Range of Externally and Centrally Placed Waterstops

The dura.joint waterstop range is extruded from specially formulated PVC material, which whilst flexible is easily welded on site to provide the primary seal in the waterproofing of water retaining and/or water excluding structures.

Hydrostatic pressure resistance in accordance with guidelines of ASTM D 5385-93.

UV resistance in accordance with ASTM G 154-16.

Uses

The prevention of regress or ingress of water or liquids through construction or expansion joints in water retaining or excluding structures such as:

  • Dams, reservoirs, digesters, water towers, canals.
  • Basements, car parks, retaining walls.
Advantages
  • Co-ordinated profiles
  • Ensures bulb continuity throughout the network.
  • Making on site jointing simpler.
  • Allows for jointing of external to centrally placed sections.
  • Allows for jointing of expansion joint section to construction joint section.
  • Flat top to centre bulb ensures snug fit of filler board.
Range

Expansion joint centrally placed

  • dura.joint PVC centre bulb – 150 mm
  • dura.joint PVC centre bulb – 200 mm
  • dura.joint PVC centre bulb – 250 mm

Expansion joint externally placed

  • dura.joint PVC external E – 150 mm
  • dura.joint PVC external E – 200 mm
  • dura.joint PVC external E – 250 mm

Construction joint centrally placed

  • dura.joint PVC dumbell – 150 mm
  • dura.joint PVC dumbell – 200 mm
  • dura.joint PVC dumbell – 250 mm

Construction joint externally placed

  • dura.joint PVC external C – 150 mm
  • dura.joint PVC external C – 200 mm
  • dura.joint PVC external C – 250 mm

In addition, factory made intersections are available for the full range:

– Mitre on flat

– 3-way on flat

– 4-way on flat

– T-piece

– 90º on edge

– 270º on edge

All these sections can be made for both similar and dissimilar sections. All intersections should be factory produced by a.b.e.® Construction Chemicals to minimize site joints.

Physical Properties
Form Extruded thermoplastic PVC sections
Colour Blue
Joint movement Up to 10 mm
Hydrostatic head Up to 10 m head
Tensile strength > 14 MPa
Elongation at break > 300%
Design Criteria

The choice of the width and thickness of waterstop is largely governed by concrete thickness, the position of the reinforcement, aggregate size and complexity of the pour. In general the 250 mm width of waterstop is suited to wall thicknesses of 250 mm and over. For concrete less than 250 mm thick, the use of a narrower waterstop approximating to the wall thickness will be appropriate. 150mm and 200mm profiles are available for this purpose.

Installation Techniques

Centrally placed waterstops

dura.joint CB and dumbell (DB) – are to be fully tied to the re-bar to eliminate possible displacement during the concreting and vibrating process. It is imperative that care is taken to fully compact the concrete around the waterstop in order to eliminate any voids or honeycombing in that area.

Externally placed waterstops

When used on ground slabs where the waterstop is supported on blinding, dura.joint external E and external C profiles usually require no fixing. Lay the waterstop centrally over the line of the joint to be formed.

Fixing to vertical shuttering is done by nailing through the outer nailing flanges leaving the head of the nail proud so that it is held in the cured concrete. This prevents the waterstop being displaced when the shuttering is struck.

Site Jointing

Only butt joints should be welded on site. Special function-made intersections are available from a.b.e.® Construction Chemicals. The ends of the butt joints must be cut square. These cut ends should then be pushed against the preheated heater blade (supplied by a.b.e.®) until a molten bead appears against the blade. Remove the blade and firmly press the two molten ends of the waterstop together and hold firmly until these ends are fused together. A piece of shutterboard or similar material placed under the joint prior to the operation will facilitate the jointing. This jointing must be undertaken in a well-ventilated area as the fumes given off when the PVC is being melted are an irritant to the lungs and eyes. In enclosed areas forced ventilation is a prerequisite. A wire brush is used to clean the PVC residue on the heater blade after every jointing operation.

Model Specification

ASTM D 5385-93 and ASTM G 154-16 certification available on request.

Waterstop dura.joint external C.

Externally placed waterstop for construction and contraction joints in walls and floors to water retaining and water excluding structures. The waterstop will be dura.joint external C, an externally placed extruded plasticized PVC compound applied in accordance with the recommendations of a.b.e.® Construction Chemicals. The waterstop will comply with the requirements of CKS 389:1973 and have an elongation at break of 300%

Waterstop dura.joint dumbell.

A centrally placed waterstop for construction and contraction joints in walls and floors to water retaining and water excluding structures. The waterstop will be dura.joint dumbell, a centrally placed extruded plasticized PVC compound applied in accordance with the recommendations of a.b.e.® Construction Chemicals. The waterstop will comply with the requirements of CKS 389:1973 and have an elongation at break of 300%.

Waterstop dura.joint external E

Externally placed waterstop for expansion joints in walls and floors to water retaining / water excluding structures. The waterstop will be dura.joint external E, an externally placed extruded plasticized PVC compound applied in accordance with the recommendations of a.b.e. Construction Chemicals. The waterstop will comply with the requirements of CKS 389:1973 and have an elongation at break of 300%.

Waterstop dura.joint centre bulb

Centrally placed waterstop for expansion joints in walls and floors to water retaining and water excluding structures. The waterstop will be dura.joint centre bulb, an externally placed extruded plasticized PVC compound applied in accordance with the recommendations of a.b.e.®

Health & Safety

Always carry out the jointing of dura.joint PVC waterstops in a well ventilated area as the fumes given off are an irritant to both eyes and lungs. In confined areas forced ventilation is a prerequisite.

Important Note

This data sheet is issued as a guide to the use of the product(s) concerned. Whilst a.b.e.® Construction Chemicals endeavors to ensure that any advice, recommendation, specification or information is accurate and correct, the company cannot – because a.b.e.® has no direct or continuous control over where and how a.b.e.® products are applied – accept any liability either directly or indirectly arising from the use of a.b.e.® products, whether or not in accordance with any advice, specification, recommendation, or information given by the company.

Further Information

Where other products are to be used in conjunction with this material, the relevant technical data sheets should be consulted to determine total requirements.

Estimating
ESTIMATING Section width Approximate mass per roll Minimum radii on flat Minimum radii on edge Roll length
dura.joint mm kg m m m
dura.joint CB 250 32,2 15 0,15 15
dura.joint CB 200 25,8 14 0,15 15
dura.joint CB 150 39,6 12 0,075 30
dura.joint dumbell 250 30,8 15 0,15 15
dura.joint dumbell 200 24,8 14 0,15 15
dura.joint dumbell 150 36,8 12 0,075 30
dura.joint external C 250 35,5 10 0,15 15
dura.joint external C 200 27,8 9 0,15 15
dura.joint external C 150 39,5 8 0,075 30
dura.joint external E 250 38,7 10 5,0 15
dura.joint external E 200 30,4 9 5,0 15
dura.joint external E 150 43,4 8 5,0 30
dura.joint CB10 250 65,3 15 0,23 15
Standard Profiles

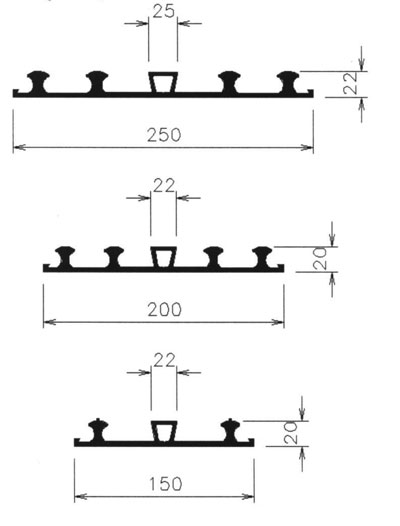

dura.®joint PVC external E

abe-construction-chemicals-general-construction-ds_durajoint_pvc_waterstops-external-e

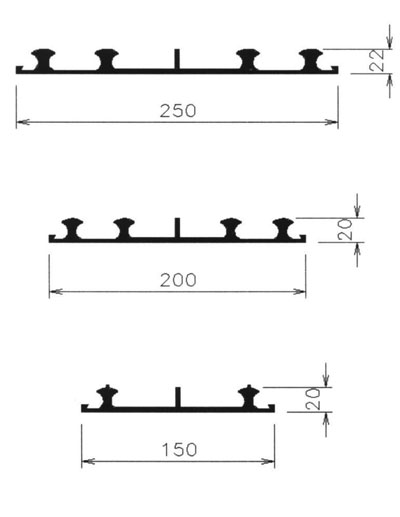

dura.®joint PVC external C

abe-construction-chemicals-general-construction-ds_durajoint_pvc_waterstops-external-c

dura.®joint PVC dumbell

abe-construction-chemicals-general-construction-ds_durajoint_pvc_waterstops-pvc-dumbell

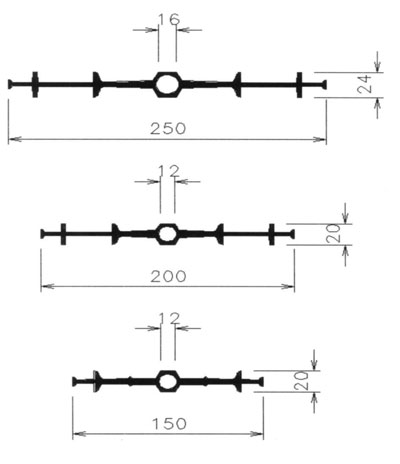

dura.®joint PVC centrebulb

abe-construction-chemicals-general-construction-ds_durajoint_pvc_waterstops-pvc-centrebulb

Standard Intersections

abe-construction-chemicals-general-construction-ds_durajoint_pvc_waterstops-intersections

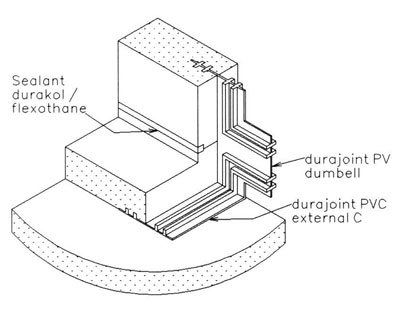

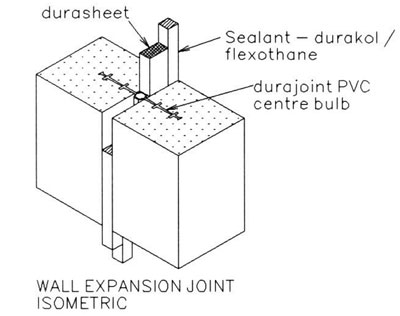

Typical Details

abe-construction-chemicals-general-construction-ds_durajoint_pvc_waterstops-typical-detail2abe-construction-chemicals-general-construction-ds_durajoint_pvc_waterstops-typical-detail3abe-construction-chemicals-general-construction-ds_durajoint_pvc_waterstops-typical-detail4abe-construction-chemicals-general-construction-ds_durajoint_pvc_waterstops-typical-details1
