Chemical Anchor based on two part Polyester Resin, styrene free

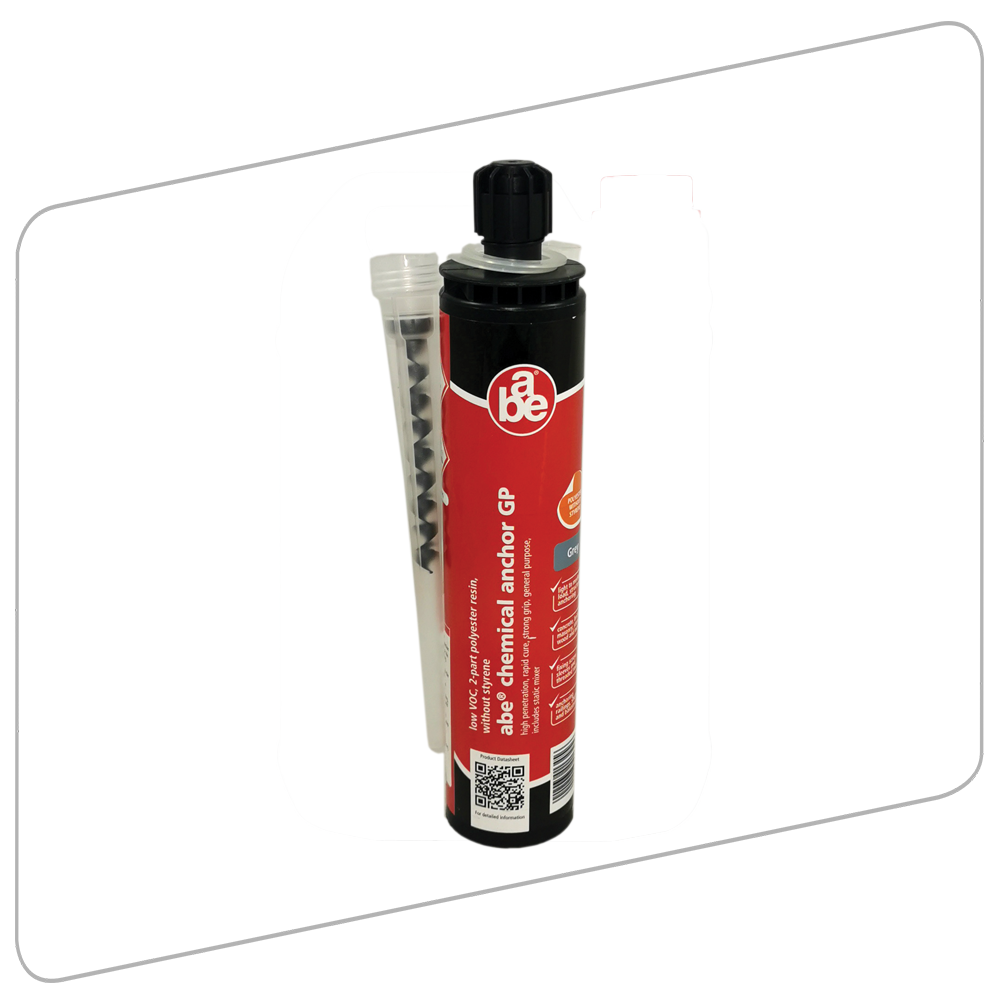

Low VOC, styrene free, two part polyester resin chemical anchor in a single, easy dispensing cartridge.

Uses
  • Anchorage on any supporting material, especially hollow materials.
  • For structural anchoring from medium to heavy loads.
  • On brick, masonry and concrete.
  • On marble, natural stone and wood.
  • Suitable for fixing screw sleeves, threaded concrete rods, anchoring hollow panels, railings, shutters, façade cladding, reinforcement bars, screw sleeves, etc.
  • In solid and hollow masonry, concrete and bricks.
Advantages
  • Easy application.
  • Does not expand, does not create additional stresses on base material.
  • Quick application and turnaround time.
  • High penetration into porous areas.
  • Low odour, can be used indoors.
  • Good chemical resistance to corrosion by acids and alkalis.
  • Thixotropic texture.
  • Rapid cure & strong grip.
  • Suitable for applications in damp conditions.
  • Static mixer included.
Surface Preparation

Surfaces must be clean, dry, free from grease, dust, loose particles and other contaminants. This is carried out by using a brush and/or oil free compressed air.

Mixing

The resin and hardener are mixed only during extrusion. Fix the static mixer onto the cartridge and ensure that the extruded product is perfectly mixed (uniform in colour). This is done by extruding 5 cm of product to ensure that the mix is homogeneous and ready for the application.

Application

Fill the hole approximately halfway and insert the stud. Rotate the stud slightly to ensure it is well encapsulated. In case of hollow bricks/blocks, completely fill the sleeve. Allow for the polymerization of the resin.

Properties

Coverage: Solid Material – Concrete

abe Construction Chemicals -  abe chemical anchor - Coverage solid material concrete

For threaded rods refer table below.

Before injecting the resin, thoroughly clean the hole ensuring that all loose particles, dust and other contaminants are removed by using oil free compressed air. Fill the hole approximately halfway and insert the threaded rod, rotating the rod slightly to ensure it is well encapsulated. Allow for the polymerization of the resin.

abe Construction Chemicals -  abe chemical anchor - Characteristic and design load resistance based on characteristic bond strengths for hef 4 x diameter to 20 x diameter - threaded rod

For rebar refer table below.

Before injecting the resin, thoroughly clean the hole ensuring that all loose particles, dust and other contaminants are removed by using oil free compressed air. Fill the hole approximately halfway and insert the threaded rod, rotating the rod slightly to ensure it is well encapsulated. Allow for the polymerization of the resin.

abe Construction Chemicals -  abe chemical anchor - characteristic and design load resistance based on characteristic bond strengths for hef 4 x diameter to 20 x diameter - rebar

Coverage: Hollow Material – Hollow Concrete and Brick

abe Construction Chemicals -  abe chemical anchor - coverage - hollow material - hollow concrete and brick

For threaded rods and internal threaded sockets of 8/10/12mm drill holes according to the installation data in the table below.

Insert the perforated plastic sleeve and fill it to the brim with resin and insert the threaded rod. Allow for the polymerization of the resin.

abe Construction Chemicals -  abe chemical anchor - hollow material concrete and brick threaded rods and internal threads

* hef = effective anchorage depth (m



Cleaning

Clean tools immediately after use, before material has set with abe® super brush cleaner, followed by washing with soap and water.The cured product can only be removed mechanically.

Caution
  • Causes serious eye irritation.
  • Causes skin irritation.
  • May cause an allergic skin reaction.
  • Wash the skin thoroughly after handling.
  • Wear protective gloves and protective clothing, eye protection and face protection.
  • If on skin: Wash with plenty of soap and water.
  • If in eyes: Rinse cautiously with water for several minutes. Remove contact lenses, if present and easy to do. Continue rinsing and seek medical advice.
  • If skin irritation occurs: Get medical advice / attention.
  • Take off contaminated clothing and wash before reuse.
  • Contains: Dibenzoyl peroxide.
  • Keep out of reach of children.
Volume / Size

300ml

Colour

Grey

Handling & Storage

abe® chemical anchor has a shelf life of 12 months from production date if kept in the original container in a cool, dry place (temperature < 30ºC). In more extreme conditions this period might be shortened.

Health & Safety
Product safety information required for safe use is not included. Before handling, read product and safety data sheets and container labels for safe use, physical and health hazard information. The safety data sheet is available from your local a.b.e.® Construction Chemicals sales representative.
Important Notice
This data sheet is issued as a guide to the use of the product(s) concerned. Whilst a.b.e.® Construction Chemicals endeavors to ensure that any advice, recommendation, specification or information is accurate and correct, the company cannot – because a.b.e.® has no direct or continuous control over where and how a.b.e.® products are applied – accept any liability either directly or indirectly arising from the use of a.b.e.® products, whether or not in accordance with any advice, specification, recommendation, or information given by the company.
Further Information
Where other products are to be used in conjunction with this material, the relevant technical data sheets should be consulted to determine total requirements. a.b.e.®Construction Chemicals has a wealth of technical and practical experience built up over years in the company’s pursuit of excellence in flooring and concrete technology.
